| Business Type | Manufacturer, Exporter, Supplier |
| Product Name | Thermocouple Cables |
| Type | Cable |
| Brand Name | Tanya |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Material
Using best quality Bare Copper, Silver Plated Copper and Nickel Plated Copper Conductors.
Condition
Good
Place Of Origin
Meerut,U.P
Payment Terms
T/T
Delivery Time
3 to 4 Days (Min.)

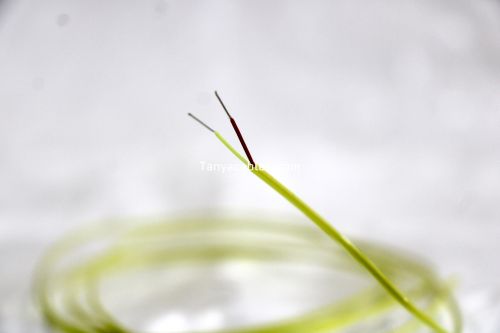

Keeping in view the specific requirements of various industries, we have a wide range of Thermocouple Cables with different specifications. The Thermocouple Compensating Cables are manufactured using the latest sophisticated technology to ensure high durability and enhanced performance. The Insulated Thermocouple Cables are insulated properly to ensure total safety. Their endurance towards temperature is extreme. The raw materials used in the manufacturing of the Thermocouple Cables are of the best quality. We stand among the prominent Exporters of premium quality Thermocouple Cables based in India.
\n
\nExtension Cables are manufactured from conductors having the same nominal composition as well as the same emf output as those of the corresponding thermocouple. Letter âXâ following the designation of the thermocouple, e.g. KX, denotes these cables.
\n
\nCompensating Cables are manufactured from conductors having different composition from the corresponding thermocouple but have similar emf output over a limited temperature range (generally 200°C). Letter âCâ following the designation of the thermocouple, e.g. âKCâ, denotes these cables.
\n
\nWe manufacture RTD, Thermocouple Extension and Compensating cables with the PTFE (Teflon®) and Fibre Glass Insulation. We make following constructions commonly with parallel as well as twisted form.
\n
\n
\n
\nWe manufacture the above Insulated cables as per the requirement or specifications of the customer with insulating material PTFE and Fibre Glass.
\n
\nWe manufacture 2 Core, 3 Core, 4 Core and 6 Core RTD cables with above mentioned constructions using best quality Bare Copper, Silver Plated Copper and Nickel Plated Copper Conductors.
\n
\nExtension Cables are manufactured from conductors having the same nominal composition as well as the same emf output as those of the corresponding thermocouple. Letter âXâ following the designation of the thermocouple, e.g. KX, denotes these cables.
\n
\nCompensating Cables are manufactured from conductors having different composition from the corresponding thermocouple but have similar emf output over a limited temperature range (generally 200°C). Letter âCâ following the designation of the thermocouple, e.g. âKCâ, denotes these cables.
\n
\nWe manufacture RTD, Thermocouple Extension and Compensating cables with the PTFE (Teflon®) and Fibre Glass Insulation. We make following constructions commonly with parallel as well as twisted form.
\n
\n
- PTFE/ PTFE
- PTFE/ PTFE/ SS Braided
- PTFE/ (SPC/ NPC/ BC) Braided/ PTFE
- PTFE/ PTFE/ Fibre Glass
- Fibre Glass/ Fibre Glass
- Fibre Glass/ Fibre Glass/ SS
- Fibre Glass/ Fibre Glass/ PTFE
\n
\n
\n
\n
\n
\n
\n
\nWe manufacture the above Insulated cables as per the requirement or specifications of the customer with insulating material PTFE and Fibre Glass.
\n
\nWe manufacture 2 Core, 3 Core, 4 Core and 6 Core RTD cables with above mentioned constructions using best quality Bare Copper, Silver Plated Copper and Nickel Plated Copper Conductors.
| Thermocouple Extension and Compensating Cable Type | Conductor combinations | Approx. working Temp. (???°C) range of measuring junction (Not related to wire size and Insulating Material) | NOTES | ||
| + Leg | - Leg | Continuous | Short Period | ||
| KX | Nickel-Chromium (Ni-Cr) Also Known as Chromel | Nickel-Aluminium (Ni-Al) (Ni-Al)Alumel® | 0 to 1100 | -180 to 1350 | Most commonly used in oxidizing atmosphere |
| KC | Copper (Cu) | Copper-Nickel (Cu-Ni) Also Known as Constantan | Most commonly used in oxidizing atmosphere | Most commonly used in oxidizing atmosphere | |
| EX | Nickel-Chromium (Ni-Cr) Also Known as Chromel® | Copper-Nickel (Cu-Ni) Also Known as Constantan | 0 to 800 | -40 to 900 | Suitable for use in a vacuum or mildly oxidizing atmosphere |
| JX | Iron (Fe) | Copper-Nickel (Cu-Ni) Also Known as Constantan | +20 to 700 | -180 to 750 | Mostly used in plastics moulding industries.Iron oxidizes at low and at high temperature |
| TX | Copper (Cu) | Copper-Nickel (Cu-Ni) Also Known as Constantan | -185 to 300 | -250 to 400 | Excellent for low termperature and good for when moisture may be present. |
